ZING200 Series

ZING^TM201RT Chipset

• 60GHz V-band transceiver for close range wireless connectivity up to 9.0Gbps
• Compact size integrating full RF Transceiver, CMOS I/O operating in full and half-duplex mode
• Low power OOK modulation
• Baseband Interface:
• CML 400mVp-p
• CMOS 700mVp-p
• Supply Voltage: Power Optimized IO/Core 2.5V/1.0V
• Power Consumption:
• Transmit: 110mW at 3dBm
• Receive: 50mW at -45dBm
• Package: BGA 4mm x 4mm x 0.9mm, 0.5mm Pitch

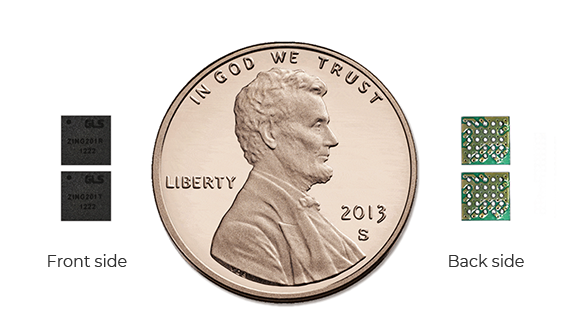

ZING^TM201T/ZING^TM201R

• 60GHz V-band transmitter and Receiver for close range wireless connectivity up to 9.0Gbps
• Compact size integrating RF Transmitter and Receiver, CMOS I/O operating in half-duplex mode
• Low power OOK modulation
• Baseband Interface:
• CML 400mVp-p
• CMOS 700mVp-p
• Supply Voltage: Power Optimized IO/Core 2.5V/1.0V
• Power Consumption:
• Transmit: 110mW at 3dBm
• Receive: 50mW at -45dBm
• Package: BGA 3mm x 3mm x 0.9mm, 0.5mm Pitch
